Description

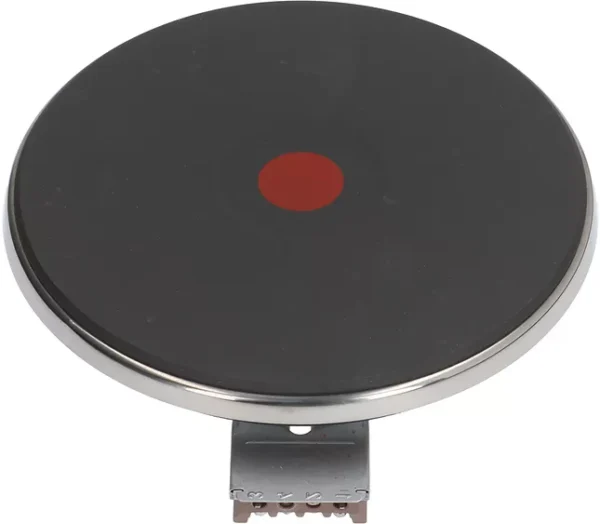

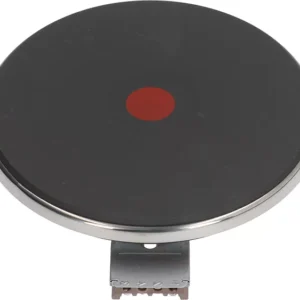

EGO 12.18463.194 Electric Hot Plate 180mm 2000W 230V

EGO cast-iron solid electric hot plate, 180mm diameter, 2000W at 230V, part number EGO 12.18463.194 – also listed under 12.18474.040, 18.18463.194, 18.18474.040. Supplied from stock in Doha by EKT (Elegant Kitchen Trading) for restaurants, hotels, central kitchens and catering operations across Qatar.

The plate fits electric ranges and boiling tops from the major European catering brands, using the standard 4 screw-clamp terminal block and an 8mm stainless steel spill ring, so it drops straight into the existing cut-out with no modification.

Technical Specifications

EGO Part Number Cross-Reference

This hot plate covers the following EGO part numbers (listed with and without dots, as they appear on the plate label and in equipment manuals):

Spare-parts cross-reference: REPA / GEV 490016.

Compatible Equipment Brands

Used in electric ranges, boiling tops and solid-top cookers from: Alpeninox, Amatis, Ambach, Ambassade, Angelo Po, Ascaso, Baron, Bertos, Bonnet, De Dietrich, EKU, Electrolux, Emmepi, Eurast, Fagor, Falcon, Giga, Haka, Hendi, Indesit, Jemi, Juno, King, Kromet, Lotus, Malag, Mareno, Mastro, Metos, Morice, Olis, Roka, Rosinox, Sagi, Sicomex, Solymac, Tecnoinox, Thermor, Thirode, Viscount, Whirlpool, Zanussi. Always confirm by matching the EGO number, diameter, wattage and voltage on your existing plate.

Before You Order – Voltage Check

230V version: single-phase connection. Do NOT connect a 230V plate across 400V – it will burn out immediately. The same plate is also available in a 400V version – check the rating label before ordering.

Installation

• Isolate the appliance from the mains before removing the old plate.
• Connect the 4 screw clamps exactly as the original wiring, using heat-resistant cable.
• Controlled by a 7-position cam switch – replace a worn switch at the same time if the old plate failed from overheating.
• On first use, heat the plate at low setting for a few minutes to burn off the protective coating (light smoke is normal).
• Installation should be carried out by a qualified electrician or catering equipment technician.

Frequently Asked Questions

My old plate shows a different EGO number – will this fit?
Yes, if it is one of the numbers in the table above. They share the same 180mm diameter, 2000W, 230V, 4 screw-clamp connection and 8mm spill ring.

Why does my EGO number start with 12, 15 or 18?
EGO uses different prefixes for revisions and series of the same plate. All numbers in the table above share the same size, power and voltage and are interchangeable.

Can EKT install it?
Yes. EKT’s maintenance team services commercial kitchens across Qatar and can supply and fit the plate on site.

سخان بلاطة كهربائية EGO 12.18463.194 – 180 ملم 2000 واط 230 فولت

بلاطة طبخ كهربائية EGO من الحديد الزهر، قطر 180 ملم، قدرة 2000 واط، جهد 230 فولت، رقم القطعة 12.18463.194. متوفرة لدى EKT في الدوحة مع خدمة التركيب في قطر. أرسل لنا صورة ملصق البلاطة القديمة عبر واتساب للتأكد من المطابقة.
