EGO 11.33454.248 Electric Hot Plate 300x300mm 3000W 400V Square with Spill Ring

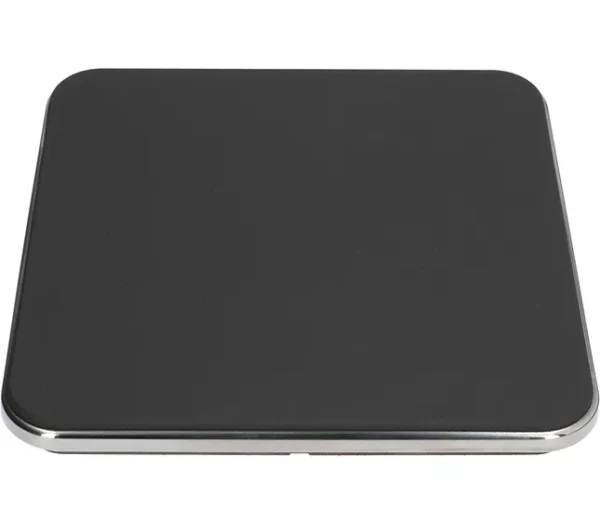

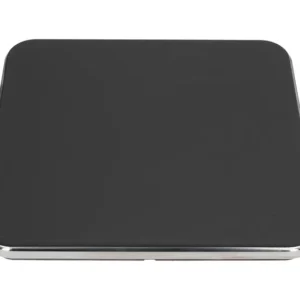

A 300 × 300 mm square cast-iron hot plate rated 3000 W at 400 V, stainless steel spill ring, 4 screw clamps. E.G.O. part number 11.33454.248 — the ten-digit number stamped on the back of the plate. Also listed as 11.33473.338.
عين طباخ كهربائي مربعة — رقم EGO: 11.33454.248. مقاس 300×300 مم، 3000 واط، 400 فولت. رقم EGO مطبوع على ظهر العين نفسها. متوفر في المخزن بالدوحة.
- Description
- Additional information
- Reviews (0)
Description
EGO 11.33454.248 Electric Hot Plate 300x300mm 3000W 400V
EGO square cast-iron electric hot plate for commercial cooking ranges, 300 × 300 mm, 3000W at 400V, stainless steel spill ring. EGO part number 11.33454.248 (1133454248). Also listed as 11.33473.338. Supplied from stock in Doha by EKT (Elegant Kitchen Trading) for restaurants, hotels and central kitchens across Qatar.
Technical Specifications
| Dimensions | 300 × 300 mm |
|---|---|
| Power | 3000 W (3 kW) |
| Voltage | 400 V – 3-phase (connected across two phases) |
| Edge | Stainless steel spill ring |
| Connection | 4 screw clamps, earthing lug (M5) |
| Thermal protector | — |
| Mounting | Rests on 4 supporting discs in the range top |
EGO Part Number Cross-Reference
| EGO number | EGO format |
|---|---|
| 1133454248 | 11.33454.248 |
| 1133473338 | 11.33473.338 |
Spare-parts references: LF 3311063 / REPA 490073.
Compatibility
Confirm by matching the EGO number stamped on the underside of your existing plate, together with size, wattage and voltage. Send a photo of the label on WhatsApp and our technicians will verify the match.
Before You Order – Voltage Check
EGO marks the voltage on the plate: 230V plates have no colour marking, 240V blue, 400V red, other voltages green. This 400V plate carries red marking. Never install a plate on a different supply voltage – a lower-voltage plate burns out, a higher-voltage plate runs far below its rated power.
Installation
- Isolate the range from the mains before removing the old plate.
- Connect the terminals exactly as the original wiring and fix the earth lug.
- Seat the plate on its 4 supporting discs so it sits level with the range top.
- On first use, heat at a low setting for a few minutes to burn off the protective coating (light smoke is normal).
- Installation should be carried out by a qualified catering equipment technician.
Frequently Asked Questions
Where do I find the EGO number?
It is the ten-digit number stamped on the underside of the plate, for example 11.33454.248 or 1133454248.
Can EKT install it?
Yes. EKT’s maintenance team services commercial kitchens across Qatar and can supply and fit the plate on site.
عين طباخ كهربائي EGO 11.33454.248 – 300×300 ملم 3000 واط 400 فولت
عين (سخان) طباخ كهربائي EGO مربعة من الحديد الزهر للمطابخ التجارية، مقاس 300×300 ملم، قدرة 3000 واط، جهد 400 فولت. رقم القطعة EGO 11.33454.248. متوفرة في المخزن لدى EKT في الدوحة مع خدمة التركيب في قطر.
Additional information
| EGO Part Number | 11.33454.248, 11.33473.338 |
|---|---|
| Dimensions | 300×300 mm |
| Power | 3000 W |
| Voltage | 400 V |
| Connection | 4 screw clamps |
| Edge | Stainless steel spill ring |
