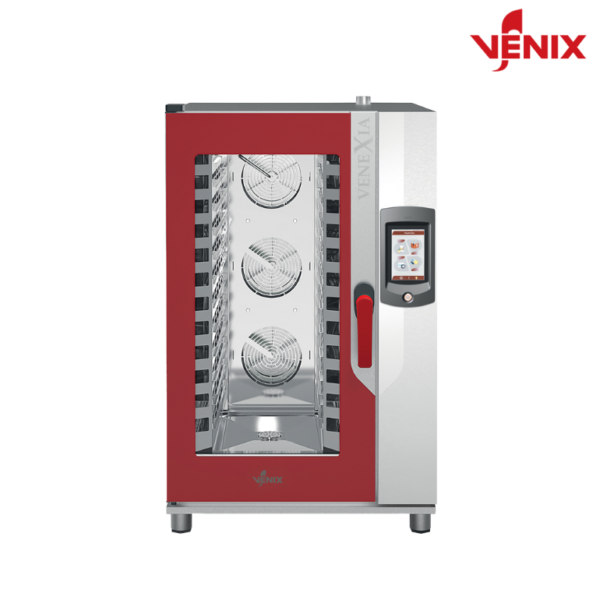

Combi Oven 12 Trays GN 1/1 Touch Control – Venix SM12TCC Spriz
The SM12TCC is the twelve-tray floor-standing combi in the Sprìz line. Twelve GN 1/1 levels is production scale: hotel kitchens, catering operations and restaurants running continuous covers through a long service.
فرن كومبي من Venix طراز SM12TCC — 12 صينية GN 1/1، خط Sprìz، صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
- Description
- Additional information
- Explore The Features
- Reviews (0)
Description
Overview
The SM12TCC is the twelve-tray floor-standing combi in the Sprìz line. Twelve GN 1/1 levels is production scale: hotel kitchens, catering operations and restaurants running continuous covers through a long service.
Key features
- 7″ capacitive touch display, 800 x 480 resolution, running an Android operating system.
- Wi-Fi connection for remote monitoring from a PC, tablet or smartphone; USB port and on-board diagnostics.
- Bi-directional reversing fan: direction changes every 80 seconds so the bake stays even across the full load.
- Automatic pre-heating setting for one tray, half load or full load.
- Hold function keeps the chamber at 70°C after the cycle finishes.
- Inverter-driven dynamic air distribution for precise temperature control.
- Reinforced double-glazed door with a heat-reflecting coating: low external contact temperature and easy to clean.
- Cloud platform integration available as an option.
Technical specification
| Model / Ref | SM12TCC |
|---|---|
| Product line | Venix Sprìz |
| Tray capacity | 12 trays GN 1/1 |
| Control | 7″ capacitive touch, Android |
| Origin | Italy |
Full electrical, water and dimensional data for this model is available on request — contact us and we will send the manufacturer technical sheet before you commit to an order.
Before you order
- Note: EKT also stocks the Venix SQ12TCC, a twelve-tray combi from the Squero line. Same tray count, different body and control generation — ask us to compare the two against your kitchen before deciding.
Installation notes
Qatar three-phase supply is nominally 415 V. Confirm the breaker rating and the water connection against the manufacturer technical sheet before ordering. A water softener is strongly recommended on Qatar mains to protect the steam injection system from scale. Allow clearance for the door swing and for service access at the rear.
Why Venix
Venix SRL builds its ovens in Castelminio di Resana near Venice. The Torcello, Campiello, Squero, San Giorgio and Sprìz lines are structured so an operator can move up in tray count or control level without changing brand, training or spare parts channel.
Supply and service in Qatar
Supplied, delivered, installed and commissioned by EKT from our premises in Doha. Our technicians handle warranty work and routine maintenance, and we stock Venix spare parts locally.
فرن كومبي من Venix طراز SM12TCC — 12 صينية GN 1/1، خط Sprìz، صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
Additional information
| Weight | 134 kg |
|---|---|
| Dimensions | 79,2 × 102,1 × 127,7 cm |
| Brand | Venix |
| Model / Ref | SM12TCC |
| Product Line | Venix Sprìz |
| Tray Capacity | 12 trays GN 1/1 |
| Control | 7″ capacitive touch, Android |
| Country of Origin | Italy |
| Technology | ELECTRIC |
| Tray capacity | 12 GN 1/1 |
| Distance between tray | 75 mm |
| Frequency (Hz) | 50/60 |
| Voltage | 380-415V 3N~/220-240V 3~ |
| Power (kW) | 16,1 |
| Oven size (WxDxH mm) | 792 x 1021 x 1277 |
| Max cooking temperature | 260°C |
| Oven weight (kg) | 134 |
| Blast Chiller | ASP05 |
| Blast Chiller stacking kit | SK16 |
