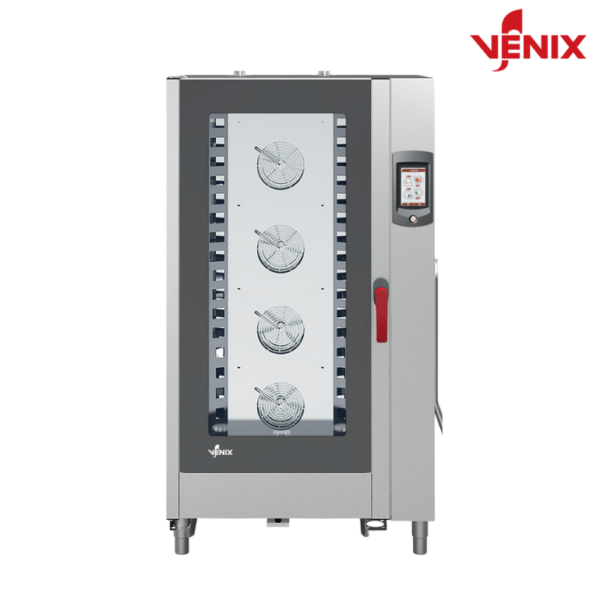

Combi Oven 20 Trays GN 2/1 Roll-In Touch Control – Venix SM40TCC Spriz
The SM40TCC is the largest oven in the Sprìz line: twenty GN 2/1 levels, equivalent to forty GN 1/1. This is banqueting, central production and large hotel scale, where a full rack is moved in and out in one operation rather than tray by tray.
فرن كومبي كبير من Venix طراز SM40TCC — 20 صينية GN 2/1، خط Sprìz، صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
- Description
- Additional information
- Explore The Features
- Reviews (0)
Description
Overview
The SM40TCC is the largest oven in the Sprìz line: twenty GN 2/1 levels, equivalent to forty GN 1/1. This is banqueting, central production and large hotel scale, where a full rack is moved in and out in one operation rather than tray by tray.
Key features
- 7″ capacitive touch display, 800 x 480 resolution, running an Android operating system.
- Wi-Fi connection for remote monitoring from a PC, tablet or smartphone; USB port and on-board diagnostics.
- Bi-directional reversing fan: direction changes every 80 seconds so the bake stays even across the full load.
- Automatic pre-heating setting for one tray, half load or full load.
- Hold function keeps the chamber at 70°C after the cycle finishes.
- Inverter-driven dynamic air distribution for precise temperature control.
- Reinforced double-glazed door with a heat-reflecting coating: low external contact temperature and easy to clean.
- Cloud platform integration available as an option.
Technical specification
| Model / Ref | SM40TCC |
|---|---|
| Product line | Venix Sprìz |
| Tray capacity | 20 trays GN 2/1 |
| Control | 7″ capacitive touch, Android |
| Origin | Italy |
Full electrical, water and dimensional data for this model is available on request — contact us and we will send the manufacturer technical sheet before you commit to an order.
Before you order
- GN 2/1 trays: twenty levels equal forty GN 1/1 positions.
- An oven of this size needs a dedicated three-phase supply, floor drainage and enough door and corridor width for delivery — our team surveys the site before the order is confirmed.
Installation notes
Qatar three-phase supply is nominally 415 V. Confirm the breaker rating and the water connection against the manufacturer technical sheet before ordering. A water softener is strongly recommended on Qatar mains to protect the steam injection system from scale. Allow clearance for the door swing and for service access at the rear.
Why Venix
Venix SRL builds its ovens in Castelminio di Resana near Venice. The Torcello, Campiello, Squero, San Giorgio and Sprìz lines are structured so an operator can move up in tray count or control level without changing brand, training or spare parts channel.
Supply and service in Qatar
Supplied, delivered, installed and commissioned by EKT from our premises in Doha. Our technicians handle warranty work and routine maintenance, and we stock Venix spare parts locally.
فرن كومبي كبير من Venix طراز SM40TCC — 20 صينية GN 2/1، خط Sprìz، صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
Additional information
| Weight | 350 kg |
|---|---|
| Dimensions | 125,2 × 109,1 × 190 cm |
| Brand | Venix |
| Model / Ref | SM40TCC |
| Product Line | Venix Sprìz |
| Tray Capacity | 20 trays GN 2/1 |
| Control | 7″ capacitive touch, Android |
| Country of Origin | Italy |
| Technology | ELECTRIC |
| Tray capacity | 40 GN 1/1 – 20 GN 2/1 |
| Distance between tray | 66 mm |
| Frequency (Hz) | 50/60 |
| Voltage | 380-415V 3N~ |
| Power (kW) | 43,6 |
| Oven size (WxDxH mm) | 1091 x 1252 x 1900 |
| Max cooking temperature | 260°C |
| Oven weight (kg) | 350 |
