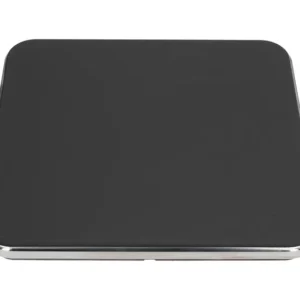

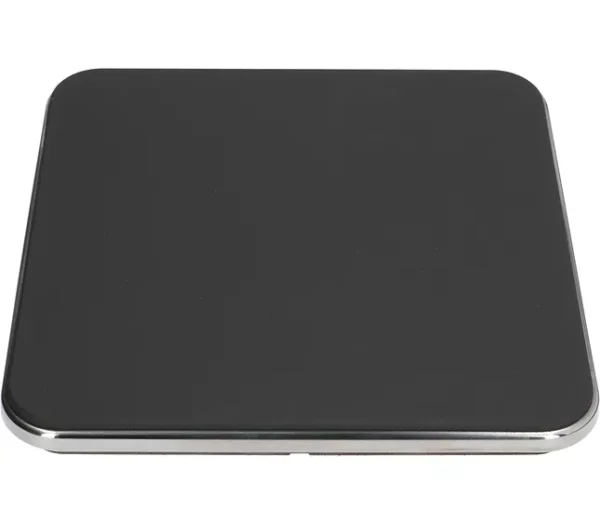

EGO 11.33454.336 Electric Hot Plate 300x300mm 4000W 440V

EGO square cast-iron electric hot plate for commercial cooking ranges, 300 × 300 mm, 4000W at 440V, stainless steel spill ring. EGO part number 11.33454.336 (1133454336). Supplied from stock in Doha by EKT (Elegant Kitchen Trading) for restaurants, hotels and central kitchens across Qatar.

Technical Specifications

EGO Part Number Cross-Reference

Spare-parts references: LF 2110843 / REPA 490194.

Compatible Equipment Brands

Used in commercial electric ranges and solid-top cookers from: Electrolux. Always confirm by matching the EGO number, size, wattage and voltage on your existing plate.

Before You Order – Voltage Check

EGO marks the voltage on the plate: 230V plates have no colour marking, 240V blue, 400V red, other voltages green. This 440V plate carries green marking. Never install a plate on a different supply voltage – a lower-voltage plate burns out, a higher-voltage plate runs far below its rated power.

Installation

• Isolate the range from the mains before removing the old plate.
• Connect the terminals exactly as the original wiring and fix the earth lug.
• Seat the plate on its 4 supporting discs so it sits level with the range top.
• On first use, heat at a low setting for a few minutes to burn off the protective coating (light smoke is normal).
• Installation should be carried out by a qualified catering equipment technician.

Frequently Asked Questions

Where do I find the EGO number?
It is the ten-digit number stamped on the underside of the plate, for example 11.33454.336 or 1133454336.

Can EKT install it?
Yes. EKT’s maintenance team services commercial kitchens across Qatar and can supply and fit the plate on site.

عين طباخ كهربائي EGO 11.33454.336 – 300×300 ملم 4000 واط 440 فولت

عين (سخان) طباخ كهربائي EGO مربعة من الحديد الزهر للمطابخ التجارية، مقاس 300×300 ملم، قدرة 4000 واط، جهد 440 فولت. رقم القطعة EGO 11.33454.336. متوفرة في المخزن لدى EKT في الدوحة مع خدمة التركيب في قطر.
