Description

Overview

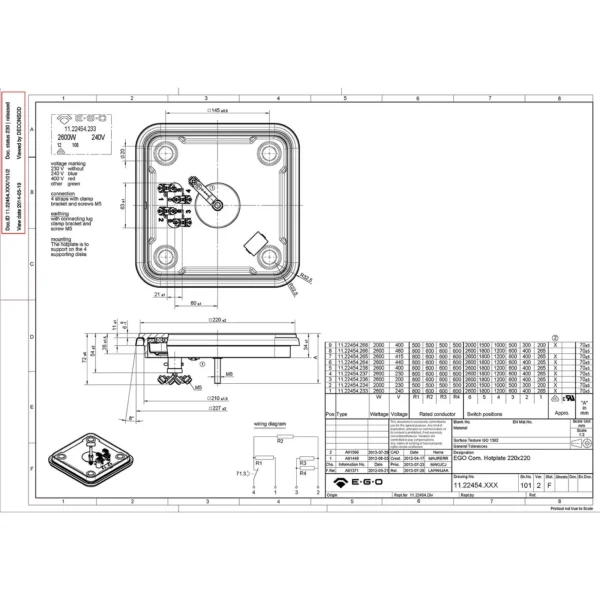

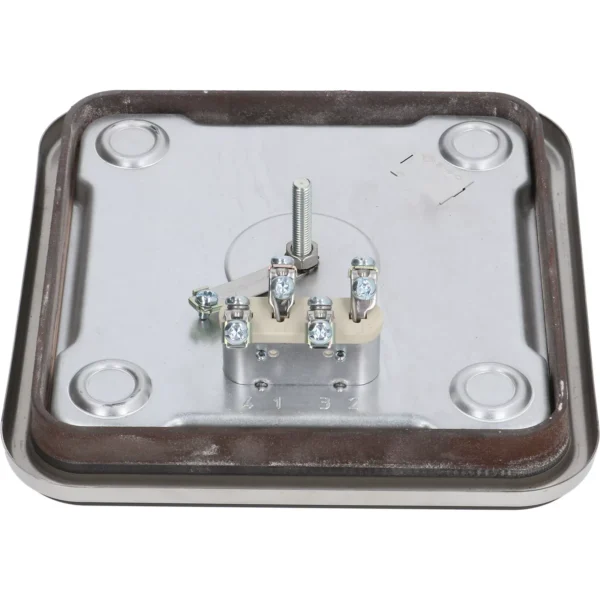

Square cast-iron electric hot plate, 220 x 220 mm, rated 2600 W at 230 V, supplied with a spill ring, a thermal protector and four screw clamp terminals. This is the OEM-equivalent heating plate used across more than forty European commercial range brands, and is identified by Electrolux reference 3311053, Alpeninox 006220 / 0A2198 / 0A2199, Ambach 5062502365 / 5062502395 and Angelo Po 3018350.

Technical specification

Check the voltage before you order

Four plates in this family share the same 220 x 220 mm square body and spill ring and cannot be told apart by eye. Read the appliance rating plate or the marking on the removed plate first:

• 490066 – 2600 W, 230 V – this product
• 490068 – 2600 W, 400 V
• 490208 – 2600 W, 440 V
• 490065 – 2000 W, 230 V

Part 490214 is an identical alternative reference to this item.

When this plate needs replacing

• The plate stays cold, or heats on one side only, after the energy regulator and switch test good.
• An open circuit or an out-of-tolerance resistance reading across the element terminals.
• A cracked, dished or warped cast surface that stops pans sitting flat.
• Corrosion or burn marks around the terminal block under the plate.
• The thermal protector trips repeatedly with a correctly sized pan on a clean plate.

Installation

Isolate the appliance at the mains before removing the top panel. Photograph the existing wiring before disconnecting it, transfer the leads one at a time, and torque the four screw clamps to the manufacturer figure. Confirm earth continuity of the new plate before returning the unit to service. Installation should be carried out by a qualified technician.

Availability in Qatar

Stocked at our warehouse in Doha. Collection from the showroom or delivery across Qatar. Our service team can also fit this plate on site as part of a maintenance visit.
