Description

Overview

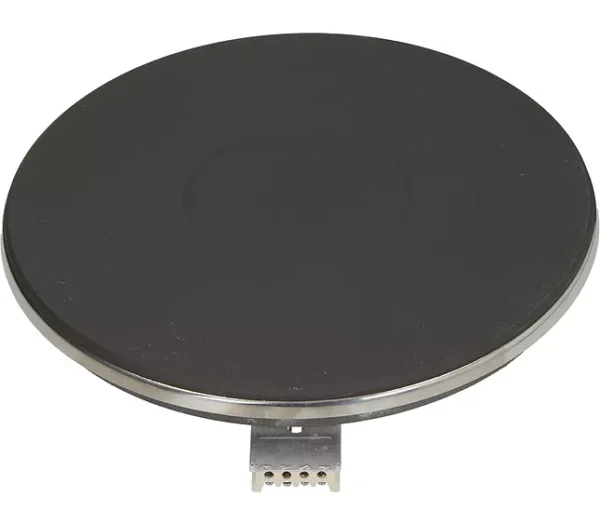

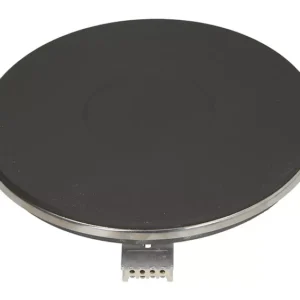

A 300 mm round cast-iron hot plate rated 3500 W at 230 V, with an 8 mm spill ring, four screw clamp terminals and a thermal protector. E.G.O. part number 12.30454.194 — the ten-digit number stamped on the back of the plate. Also carried as 3311089 and 490062.

Technical specification

Finding your E.G.O. number

E.G.O. manufactures the cast-iron plates fitted to most European commercial ranges, whatever badge is on the appliance. The ten-digit E.G.O. number is stamped on the back of the plate and is the only reference that identifies it without ambiguity — distributor codes differ from one supplier to the next. The prefix already tells you the shape and size:

When a hot plate needs replacing

• The plate stays cold, or heats unevenly, after the energy regulator and switch test good.
• An open circuit or an out-of-tolerance resistance reading across the terminals.
• A cracked, dished or warped cast surface that stops pans sitting flat.
• Corrosion or burn marks around the terminal block under the plate.
• A protector that trips repeatedly with a correctly sized pan on a clean plate.

Ordering the right plate

If the E.G.O. number is legible, order from that alone. If it has burnt off, match four things: diameter, wattage, voltage and terminal type. Plates of the same diameter are built in 230 V, 400 V and 440 V and look identical — fitting the wrong voltage destroys the plate.

Installation

Isolate the appliance at the mains before removing the top panel. Photograph the wiring before disconnecting it, transfer the leads one at a time, and torque the terminals to the manufacturer figure. Confirm earth continuity before returning the unit to service. Installation should be carried out by a qualified technician.

Availability in Qatar

Stocked at our warehouse in Doha. Collection from the showroom or delivery across Qatar. Our service team can fit the plate on site as part of a maintenance visit.

سخان (عين) طباخ كهربائي — رقم EGO: 12.30454.194. قطر 300 مم، 3500 واط، 230 فولت، حافة مانعة للانسكاب 8 مم، 4 مسامير ربط. رقم الكتالوج 3311089. رقم EGO مطبوع على ظهر العين نفسها — هو المرجع الأكيد. متوفر في المخزن بالدوحة.
