Description

Overview

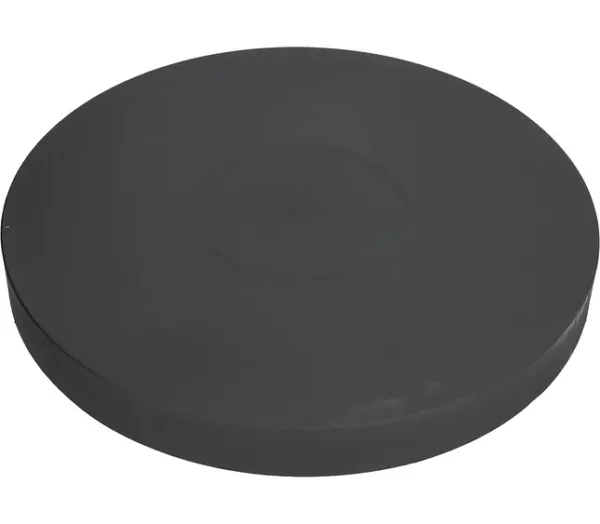

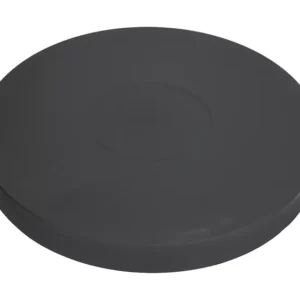

The largest plate in this group: 400 mm diameter, 5000 W at 400 V, cast edge and a 42 mm overall height, mounted on a screw bolt with two sets of three screw clamps. E.G.O. part number 12.40670.231. Note the related 12.40870.007 is the same size and rating but uses four sets of two connections — count the terminals before ordering.

Technical specification

Finding your E.G.O. number

E.G.O. manufactures the cast-iron plates fitted to most European commercial ranges, whatever badge is on the appliance. The ten-digit E.G.O. number is stamped on the back of the plate and is the only reference that identifies it without ambiguity — distributor codes differ from one supplier to the next. The prefix already tells you the shape and size:

When a hot plate needs replacing

• The plate stays cold, or heats unevenly, after the energy regulator and switch test good.
• An open circuit or an out-of-tolerance resistance reading across the terminals.
• A cracked, dished or warped cast surface that stops pans sitting flat.
• Corrosion or burn marks around the terminal block under the plate.
• A protector that trips repeatedly with a correctly sized pan on a clean plate.

Ordering the right plate

If the E.G.O. number is legible, order from that alone. If it has burnt off, match four things: diameter, wattage, voltage and terminal type. Plates of the same diameter are built in 230 V, 400 V and 440 V and look identical — fitting the wrong voltage destroys the plate.

Before ordering

Compatible brand list still to be confirmed.

Installation

Isolate the appliance at the mains before removing the top panel. Photograph the wiring before disconnecting it, transfer the leads one at a time, and torque the terminals to the manufacturer figure. Confirm earth continuity before returning the unit to service. Installation should be carried out by a qualified technician.

Availability in Qatar

Stocked at our warehouse in Doha. Collection from the showroom or delivery across Qatar. Our service team can fit the plate on site as part of a maintenance visit.

سخان (عين) طباخ كهربائي — رقم EGO: 12.40670.231. قطر 400 مم، 5000 واط، 400 فولت، حافة مصبوبة، ارتفاع 42 مم. رقم الكتالوج 3311175. رقم EGO مطبوع على ظهر العين نفسها — هو المرجع الأكيد. متوفر في المخزن بالدوحة.
