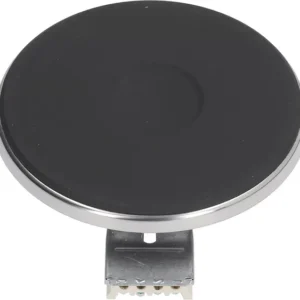

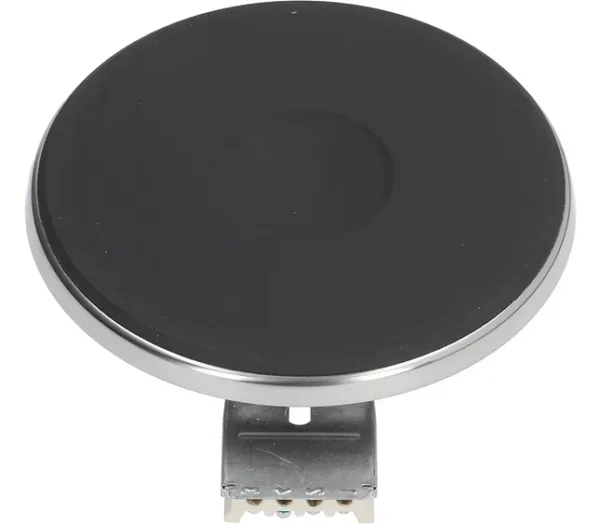

EGO 18.14453.002 Electric Hot Plate 145mm 1000W 230V

EGO cast-iron solid electric hot plate, 145mm diameter, 1000W at 230V, with an 8mm chrome spill ring and 4 screw-clamp terminals. EGO 18.14453.002 is the current version and replaces the older EGO numbers 12.14453.002, 12.14453.022, 12.14453.194. Supplied from stock in Doha by EKT (Elegant Kitchen Trading) for electric cookers and hobs with solid hot plates across Qatar.

Technical Specifications

EGO Part Number Cross-Reference

Appliance Manufacturer References

LF / REPA reference: 3311090.

Compatible Equipment Brands

Used in electric cookers and hobs with solid hot plates from: AEG, Ariston, Balay, Bauknecht, Bosch, Constructa, Electrolux, Gaggenau, Gico, Gorenje, Ignis, Indesit, Juno, Lotus, MBM, Neff, Philips, Pitsos, Profilo, Siemens, Whirlpool, Zanussi Professional. Always confirm by matching the EGO number, diameter, wattage and voltage on your existing plate.

Installation – Wiring Notes

• Isolate the appliance from the mains before removing the old plate.
• 7-position switch: connect the 4 screw clamps exactly as the original wiring.
• 4-position switch: bridge terminals 3 and 4.
• Energy regulator (simmerstat): bridge terminals 1 and 2, and terminals 3 and 4.
• On first use, heat the plate at a low setting for a few minutes to burn off the protective coating (light smoke is normal).
• Installation should be carried out by a qualified electrician or appliance technician.

Frequently Asked Questions

My old plate says 12.14453.002 – is this the right part?
Yes. EGO replaced 12.14453.002, 12.14453.022 and 12.14453.194 with 18.14453.002. Same 145mm diameter, 1000W, 230V and 4 screw-clamp connection.

Where do I find the EGO number?
It is the ten-digit number stamped on the back of the plate, for example 18.14453.002.

Can EKT install it?
Yes. EKT’s maintenance team services kitchens across Qatar and can supply and fit the plate on site.

سخان (عين) طباخ كهربائي EGO 18.14453.002 – 145 ملم 1000 واط 230 فولت

عين طباخ كهربائية EGO من الحديد الزهر، قطر 145 ملم، قدرة 1000 واط، جهد 230 فولت، حافة كروم 8 ملم و4 مسامير ربط. رقم 18.14453.002 هو الإصدار الحالي ويحل محل الأرقام القديمة 12.14453.002, 12.14453.022, 12.14453.194. متوفرة لدى EKT في الدوحة مع خدمة التركيب في قطر.
