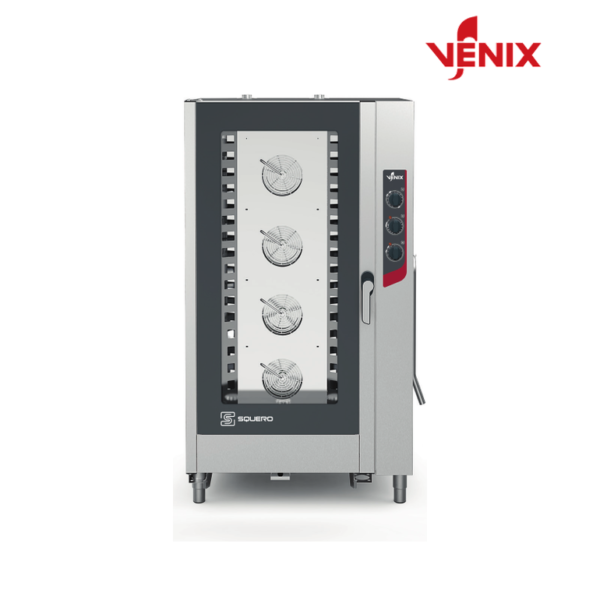

Combi Oven 20 Trays GN 1/1 Mechanical Trolley – Venix SQ20M0N0 Squero
The SQ20M0N0 is a twenty-tray roll-in combi with four fans and mechanical controls. At 250 kg and 28.1 kW it is banqueting and central-production scale — the trolley means a full rack is loaded in one movement rather than tray by tray.
فرن كومبي كبير من Venix طراز SQ20M0N0 — 20 صينية GN 1/1 بعربة متحركة، قدرة 28.1 kW، حرارة قصوى 260 C. صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
- Description
- Additional information
- Reviews (0)
Description
Overview
The SQ20M0N0 is a twenty-tray roll-in combi with four fans and mechanical controls. At 250 kg and 28.1 kW it is banqueting and central-production scale — the trolley means a full rack is loaded in one movement rather than tray by tray.
Key points
- Roll-in trolley (PA 20/66): load a full rack in one movement.
- Four fans across a 1496 mm high chamber.
- 28.1 kW at 44.1 A three-phase — dedicated supply and breaker required.
- Two 30 mm drains. 250 kg: confirm floor loading and door widths before delivery.
Technical specification
| Model / Ref | SQ20M0N0 |
|---|---|
| Product line | Squero |
| Tray capacity | 20 trays GN 1/1 on roll-in trolley |
| Tray rack | Trolley PA 20/66 |
| Max tray load | 4 kg |
| Control | Analogic mechanical, linear timer |
| Fans / speeds | 4 motors, 1 speed |
| Max temperature | 260 C |
| Core probe | Not fitted |
| Humidification | Direct injection |
| Chimney | 50 mm open |
| Door | Right handle |
| Chamber material | AISI 304 |
| Chamber size WxDxH | 700 x 481 x 1496 mm |
| Oven size WxDxH | 1051 x 1002 x 1900 mm |
| Net weight | 250 kg |
| Power | 28.1 kW |
| Power supply | 380-415V 3N~ |
| Amperage | 44.1 A |
| Water connection | 3/4″ gas inlet, 15.7 l/h max |
| Water drain | 2 x 30 mm |
| Certification | CE |
| Origin | Italy |
Installation notes
Confirm the electrical supply and breaker rating against the amperage above before ordering — Qatar three-phase is nominally 415 V. Where the oven takes a humidification water inlet, a softener is strongly recommended on Qatar mains to protect the steam injection system from scale. Allow clearance for the door swing and for service access to the rear panel.
Why Venix
Venix SRL builds its ovens in Castelminio di Resana near Venice, and supplies its Torcello, Campiello, Squero, San Giorgio and Spriz lines across Europe and the Gulf. The range is structured so an operator can move up in tray count or control level without changing brand, training or spare parts channel.
Supply and service in Qatar
Supplied, delivered, installed and commissioned by EKT from our premises in Doha. Our technicians handle warranty work and routine maintenance, and we stock Venix spare parts locally.
فرن كومبي كبير من Venix طراز SQ20M0N0 — 20 صينية GN 1/1 بعربة متحركة، قدرة 28.1 kW، حرارة قصوى 260 C. صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
Additional information
| Weight | 250 kg |
|---|---|
| Brand | Venix |
| Model / Ref | SQ20M0N0 |
| Product Line | Squero |
| Tray Capacity | 20 trays GN 1/1 on roll-in trolley |
| Control | Analogic mechanical, linear timer |
| Fans / Speeds | 1 speed, 4 motors |
| Max Temperature | 260 C |
| Core Probe | Not fitted |
| Humidification | Direct injection |
| Chamber Material | AISI 304 |
| Chamber Size | 700 x 481 x 1496 mm |
| Outside Dimensions | 1051 x 1002 x 1900 mm |
| Weight | 250 kg |
| Power | 28.1 kW |
| Voltage | 380-415V 3N~ |
| Amperage | 44.1 A |
| Certification | CE |
| Country of Origin | Italy |
