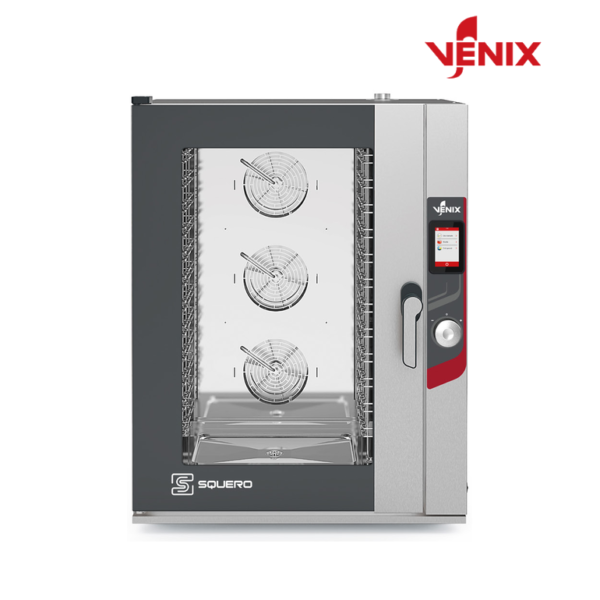

Combi Oven 12 Trays GN 1/1 5in Touch Control – Venix SQ12TCC Squero
The SQ12TCC is the twelve-tray combi in the Squero line, run from a 5 inch capacitive touch panel with a PT1000 core probe fitted as standard. Core-probe cooking is what separates a combi from a convection oven: the oven finishes on the food’s temperature, not the clock.
فرن كومبي من Venix طراز SQ12TCC — 12 صينية GN 1/1، قدرة 15.7 kW (16.2 kW at 60 Hz)، حرارة قصوى 260 C. صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
- Description
- Additional information
- Reviews (0)
Description
Overview
The SQ12TCC is the twelve-tray combi in the Squero line, run from a 5 inch capacitive touch panel with a PT1000 core probe fitted as standard. Core-probe cooking is what separates a combi from a convection oven: the oven finishes on the food’s temperature, not the clock.
Key points
- Core probe fitted as standard — not an option.
- Motorised chimney damper for steam and dry-heat control.
- ⚠ Different line from the SM12TCC already on our site — compare both before ordering.
Technical specification
| Model / Ref | SQ12TCC |
|---|---|
| Product line | Squero |
| Tray capacity | 12 trays GN 1/1 |
| Max tray load | 4 kg |
| Control | 5″ capacitive touch |
| Fans / speeds | 3 motors, 2 speeds |
| Max temperature | 260 C |
| Core probe | Single point PT1000 (fitted) |
| Humidification | Direct injection |
| Chimney | 50 mm motorised |
| Door | Right handle |
| Chamber material | AISI 304 |
| Chamber size WxDxH | 660 x 490 x 948 mm |
| Oven size WxDxH | 937 x 890 x 1220 mm |
| Net weight | 135 kg |
| Power | 15.7 kW (16.2 kW at 60 Hz) |
| Power supply | 380-415V 3N~ / 220-240V 3~ |
| Amperage | 24.9 A / 40.38 A |
| Water connection | Humidification water inlet |
| Certification | CE – CB |
| Origin | Italy |
Installation notes
Confirm the electrical supply and breaker rating against the amperage above before ordering — Qatar three-phase is nominally 415 V. Where the oven takes a humidification water inlet, a softener is strongly recommended on Qatar mains to protect the steam injection system from scale. Allow clearance for the door swing and for service access to the rear panel.
Why Venix
Venix SRL builds its ovens in Castelminio di Resana near Venice, and supplies its Torcello, Campiello, Squero, San Giorgio and Spriz lines across Europe and the Gulf. The range is structured so an operator can move up in tray count or control level without changing brand, training or spare parts channel.
Supply and service in Qatar
Supplied, delivered, installed and commissioned by EKT from our premises in Doha. Our technicians handle warranty work and routine maintenance, and we stock Venix spare parts locally.
Spare parts and related equipment
For spare parts, search by part number in our spare parts finder. See all Venix equipment or the full cooking equipment range.
Similar models:
Frequently asked questions
What electrical supply does the Venix SQ12TCC need?
The Venix SQ12TCC is rated 15.7 kW (16.2 kW at 60 Hz) on 380-415V 3N~ / 220-240V 3~, drawing 24.9 A / 40.38 A. Have a qualified electrician confirm the supply, cable and isolator before installation.
What are the dimensions and weight of the SQ12TCC?
Outside dimensions: 937 x 890 x 1220 mm. Weight: 135 kg.
How many trays does the SQ12TCC take?
12 trays GN 1/1.
Can I get spare parts for the SQ12TCC in Qatar?
Yes. EKT supplies original Venix spare parts in Doha. Send us the model and serial number from the rating plate, or the part number, on WhatsApp and we will confirm the part.
هل يتوفر فرن كومبي Venix SQ12TCC في قطر؟
نعم. توفر EKT فرن كومبي Venix طراز SQ12TCC في الدوحة مع التوصيل والتركيب والضمان والصيانة وقطع الغيار الأصلية. تواصل معنا عبر واتساب لمعرفة السعر والتوفر.
فرن كومبي من Venix طراز SQ12TCC — 12 صينية GN 1/1، قدرة 15.7 kW (16.2 kW at 60 Hz)، حرارة قصوى 260 C. صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
Additional information
| Weight | 135 kg |
|---|---|
| Brand | Venix |
| Model / Ref | SQ12TCC |
| Product Line | Squero |
| Tray Capacity | 12 trays GN 1/1 |
| Control | 5" capacitive touch |
| Fans / Speeds | 2 speeds, 3 motors |
| Max Temperature | 260 C |
| Core Probe | Single point PT1000 (fitted) |
| Humidification | Direct injection |
| Chamber Material | AISI 304 |
| Chamber Size | 660 x 490 x 948 mm |
| Outside Dimensions | 937 x 890 x 1220 mm |
| Weight | 135 kg |
| Power | 15.7 kW (16.2 kW at 60 Hz) |
| Voltage | 380-415V 3N~ / 220-240V 3~ |
| Amperage | 24.9 A / 40.38 A |
| Certification | CE – CB |
| Country of Origin | Italy |
