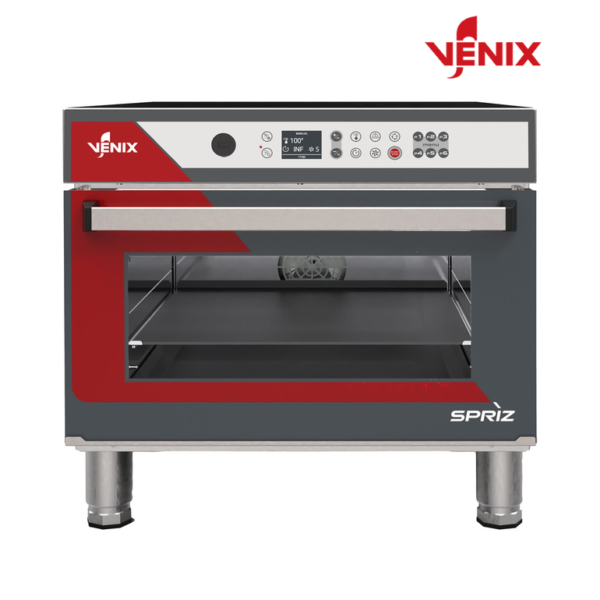

High-Speed Convection Oven 3-Phase 5.23kW – Venix SPZLLR0AGR00 Spriz
The SPZLLR0AGR00 is the larger three-phase Spriz: a 470 x 460 mm chamber driven by an inverter fan, for counters that need pizza, panini and reheated plates out fast without a full convection oven footprint.
فرن حمل حراري فائق السرعة من Venix طراز SPZLLR0AGR00 — مستوى واحد، حمولة 3 كجم، قدرة 5.23 kW، حرارة قصوى 260 C. صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
- Description
- Additional information
- Reviews (0)
Description
Overview
The SPZLLR0AGR00 is the larger three-phase Spriz: a 470 x 460 mm chamber driven by an inverter fan, for counters that need pizza, panini and reheated plates out fast without a full convection oven footprint.
Key points
- No water connection needed — dry cooking only, simplifies siting.
- Draws only 8 A despite 5.23 kW, thanks to three-phase supply.
- Larger chamber than the single-phase SPZLR0AER00.
Technical specification
| Model / Ref | SPZLLR0AGR00 |
|---|---|
| Product line | Spriz |
| Tray capacity | Single level |
| Tray rack | Sheet metal single level |
| Max tray load | 3 kg |
| Control | Digital 2,4″ LCD |
| Fans / speeds | 1 motor, 5 speeds + inverter |
| Max temperature | 260 C |
| Core probe | Single point PT1000 |
| Humidification | Not fitted |
| Chimney | 20 mm open |
| Door | Flap door |
| Chamber material | AISI 430 |
| Chamber size WxDxH | 470 x 460 x 215 mm |
| Oven size WxDxH | 610 x 835 x 610 mm |
| Net weight | 58.8 kg |
| Power | 5.23 kW |
| Power supply | 380-415V 3N~ |
| Amperage | 8 A |
| Water connection | Not required |
| Certification | CE |
| Origin | Italy |
Installation notes
Confirm the electrical supply and breaker rating against the amperage above before ordering — Qatar three-phase is nominally 415 V. Where the oven takes a humidification water inlet, a softener is strongly recommended on Qatar mains to protect the steam injection system from scale. Allow clearance for the door swing and for service access to the rear panel.
Why Venix
Venix SRL builds its ovens in Castelminio di Resana near Venice, and supplies its Torcello, Campiello, Squero, San Giorgio and Spriz lines across Europe and the Gulf. The range is structured so an operator can move up in tray count or control level without changing brand, training or spare parts channel.
Supply and service in Qatar
Supplied, delivered, installed and commissioned by EKT from our premises in Doha. Our technicians handle warranty work and routine maintenance, and we stock Venix spare parts locally.
Spare parts and related equipment
For spare parts, search by part number in our spare parts finder. See all Venix equipment or the full cooking equipment range.
Similar models:
- High-Speed Convection Oven Single Phase 3.4kW – Venix SPZLR0AER00 Spriz
- Ventless Commercial Air Fryer No Hood Required – Venix HOPLCNCE
Frequently asked questions
What electrical supply does the Venix SPZLLR0AGR00 need?
The Venix SPZLLR0AGR00 is rated 5.23 kW on 380-415V 3N~, drawing 8 A. Have a qualified electrician confirm the supply, cable and isolator before installation.
What are the dimensions and weight of the SPZLLR0AGR00?
Outside dimensions: 610 x 835 x 610 mm. Weight: 58.8 kg.
Can I get spare parts for the SPZLLR0AGR00 in Qatar?
Yes. EKT supplies original Venix spare parts in Doha. Send us the model and serial number from the rating plate, or the part number, on WhatsApp and we will confirm the part.
هل يتوفر فرن سريع Venix SPZLLR0AGR00 في قطر؟
نعم. توفر EKT فرن سريع Venix طراز SPZLLR0AGR00 في الدوحة مع التوصيل والتركيب والضمان والصيانة وقطع الغيار الأصلية. تواصل معنا عبر واتساب لمعرفة السعر والتوفر.
فرن حمل حراري فائق السرعة من Venix طراز SPZLLR0AGR00 — مستوى واحد، حمولة 3 كجم، قدرة 5.23 kW، حرارة قصوى 260 C. صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
Additional information
| Weight | 58,8 kg |
|---|---|
| Brand | Venix |
| Model / Ref | SPZLLR0AGR00 |
| Product Line | Spriz |
| Tray Capacity | Single level |
| Control | Digital 2.4in LCD |
| Fans / Speeds | 1 motor, 5 speeds + inverter |
| Max Temperature | 260 C |
| Core Probe | Single point PT1000 |
| Humidification | Not fitted |
| Chamber Material | AISI 430 |
| Chamber Size | 470 x 460 x 215 mm |
| Outside Dimensions | 610 x 835 x 610 mm |
| Weight | 58.8 kg |
| Power | 5.23 kW |
| Voltage | 380-415V 3N~ |
| Amperage | 8 A |
| Certification | CE |
| Country of Origin | Italy |
