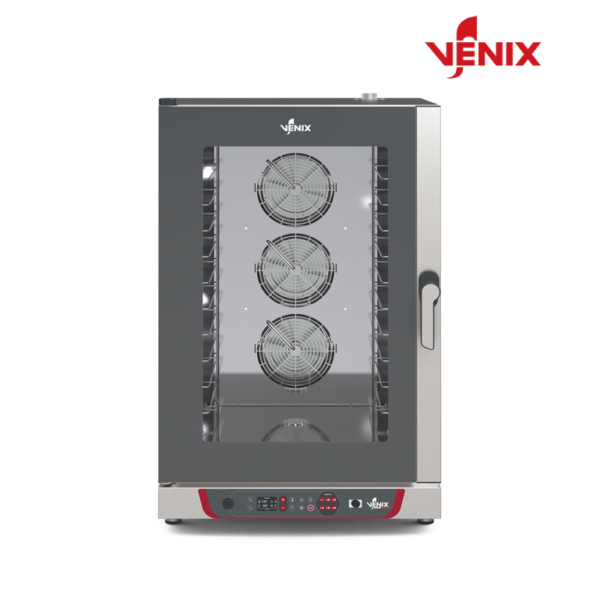

Bakery Convection Oven 10 Trays 600×400 GN 1/1 Digital – Venix CP10DG0 Campiello
The CP10DG0 is the ten-tray Campiello: three fans across a 948 mm high chamber, direct steam injection and the same 2.4 inch TFT control as the smaller models. It is the production size for bakeries and hotel pastry sections.
فرن حمل حراري للمخابز من Venix طراز CP10DG0 — 10 صواني 600×400 مم، قدرة 15.8 kW، حرارة قصوى 260 C. صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
- Description
- Additional information
- Reviews (0)
Description
Overview
The CP10DG0 is the ten-tray Campiello: three fans across a 948 mm high chamber, direct steam injection and the same 2.4 inch TFT control as the smaller models. It is the production size for bakeries and hotel pastry sections.
Key points
- Three fans keep the bake even from the top tray to the bottom.
- Three-phase 380-415V only, 25.2 A — confirm the breaker before installation.
Technical specification
| Model / Ref | CP10DG0 |
|---|---|
| Product line | Campiello |
| Tray capacity | 10 trays 600×400 mm / GN 1/1 |
| Tray rack | Wire PA-BIV 10/80 mm |
| Max tray load | 4 kg |
| Control | TFT 2,4″ IPS |
| Fans / speeds | 3 motors, 5 speeds |
| Max temperature | 260 C |
| Core probe | Available as optional |
| Humidification | Direct injection |
| Chimney | 50 mm open |
| Door | Right handle |
| Chamber material | AISI 304 |
| Chamber size WxDxH | 660 x 490 x 948 mm |
| Oven size WxDxH | 818 x 893 x 1318.4 mm |
| Net weight | 128 kg |
| Power | 15.8 kW |
| Power supply | 380-415V 3N~ |
| Amperage | 25.2 A |
| Water connection | 3/4″ M gas threaded inlet, 22.4 l/h max |
| Water drain | 30 mm |
| Certification | CE |
| Origin | Italy |
Installation notes
Confirm the electrical supply and breaker rating against the amperage above before ordering — Qatar three-phase is nominally 415 V. Where the oven takes a humidification water inlet, a softener is strongly recommended on Qatar mains to protect the steam injection system from scale. Allow clearance for the door swing and for service access to the rear panel.
Why Venix
Venix SRL builds its ovens in Castelminio di Resana near Venice, and supplies its Torcello, Campiello, Squero, San Giorgio and Spriz lines across Europe and the Gulf. The range is structured so an operator can move up in tray count or control level without changing brand, training or spare parts channel.
Supply and service in Qatar
Supplied, delivered, installed and commissioned by EKT from our premises in Doha. Our technicians handle warranty work and routine maintenance, and we stock Venix spare parts locally.
Spare parts and related equipment
For spare parts, search by part number in our spare parts finder. See all Venix equipment or the full bakery equipment range.
Similar models:
- Bakery Convection Oven 10 Trays 600×400 GN 1/1 Digital – Venix SQ10DG0 Squero
- Bakery Convection Oven 10 Trays 600×400 GN 1/1 Mechanical 280C – Venix SQ10M0G0
- Bakery Convection Oven 6 Trays 600×400 GN 1/1 Digital – Venix SQ06DG0 Squero
- Bakery Convection Oven 6 Trays 600×400 GN 1/1 Mechanical 280C – Venix SQ06M0G0
Frequently asked questions
What electrical supply does the Venix CP10DG0 need?
The Venix CP10DG0 is rated 15.8 kW on 380-415V 3N~, drawing 25.2 A. Have a qualified electrician confirm the supply, cable and isolator before installation.
What are the dimensions and weight of the CP10DG0?
Outside dimensions: 818 x 893 x 1318.4 mm. Weight: 128 kg.
How many trays does the CP10DG0 take?
10 trays 600×400 mm / GN 1/1.
Can I get spare parts for the CP10DG0 in Qatar?
Yes. EKT supplies original Venix spare parts in Doha. Send us the model and serial number from the rating plate, or the part number, on WhatsApp and we will confirm the part.
هل يتوفر فرن حمل حراري للمخابز Venix CP10DG0 في قطر؟
نعم. توفر EKT فرن حمل حراري للمخابز Venix طراز CP10DG0 في الدوحة مع التوصيل والتركيب والضمان والصيانة وقطع الغيار الأصلية. تواصل معنا عبر واتساب لمعرفة السعر والتوفر.
فرن حمل حراري للمخابز من Venix طراز CP10DG0 — 10 صواني 600×400 مم، قدرة 15.8 kW، حرارة قصوى 260 C. صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
Additional information
| Weight | 128 kg |
|---|---|
| Brand | Venix |
| Model / Ref | CP10DG0 |
| Product Line | Campiello |
| Tray Capacity | 10 trays 600×400 mm / GN 1/1 |
| Control | TFT 2.4in IPS |
| Fans / Speeds | 3 motors, 5 speeds |
| Max Temperature | 260 C |
| Core Probe | Available as optional |
| Humidification | Direct injection |
| Chamber Material | AISI 304 |
| Chamber Size | 660 x 490 x 948 mm |
| Outside Dimensions | 818 x 893 x 1318.4 mm |
| Weight | 128 kg |
| Power | 15.8 kW |
| Voltage | 380-415V 3N~ |
| Amperage | 25.2 A |
| Certification | CE |
| Country of Origin | Italy |
