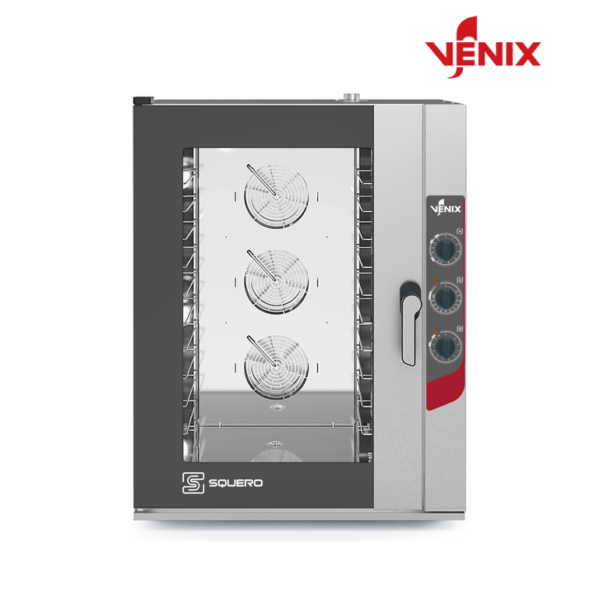

Bakery Convection Oven 10 Trays 600×400 GN 1/1 Mechanical 280C – Venix SQ10M0G0
The SQ10M0G0 is the mechanical ten-tray Squero: three fans, a motorised chimney and a 280°C ceiling, controlled by knobs. It is the choice where reliability and simple servicing matter more than programmable recipes.
فرن حمل حراري بتحكم ميكانيكي من Venix طراز SQ10M0G0 — 10 صواني 600×400 مم، قدرة 15.6 kW (18.5 kW version available)، حرارة قصوى 280 C. صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
- Description
- Additional information
- Reviews (0)
Description
Overview
The SQ10M0G0 is the mechanical ten-tray Squero: three fans, a motorised chimney and a 280°C ceiling, controlled by knobs. It is the choice where reliability and simple servicing matter more than programmable recipes.
Key points
- 280°C maximum — 20°C above the digital SQ10DG0.
- ⚠ Do not confuse with the San Giorgio SG10M0G0: different line, different body.
- Motorised chimney damper fitted as standard.
Technical specification
| Model / Ref | SQ10M0G0 |
|---|---|
| Product line | Squero |
| Tray capacity | 10 trays 600×400 mm / GN 1/1 |
| Max tray load | 4 kg |
| Control | Analogic mechanical |
| Fans / speeds | 3 motors, 1 speed |
| Max temperature | 280 C |
| Core probe | Not fitted |
| Humidification | Direct injection |
| Chimney | 50 mm motorised |
| Door | Right handle |
| Chamber material | AISI 304 |
| Chamber size WxDxH | 660 x 490 x 948 mm |
| Oven size WxDxH | 937 x 890 x 1220 mm |
| Net weight | 135 kg |
| Power | 15.6 kW (18.5 kW version available) |
| Power supply | 380-415V 3N~ / 220-240V ~ |
| Amperage | 24.5 A / 68 A |
| Water connection | Humidification water inlet |
| Certification | CE – CB |
| Origin | Italy |
Installation notes
Confirm the electrical supply and breaker rating against the amperage above before ordering — Qatar three-phase is nominally 415 V. Where the oven takes a humidification water inlet, a softener is strongly recommended on Qatar mains to protect the steam injection system from scale. Allow clearance for the door swing and for service access to the rear panel.
Why Venix
Venix SRL builds its ovens in Castelminio di Resana near Venice, and supplies its Torcello, Campiello, Squero, San Giorgio and Spriz lines across Europe and the Gulf. The range is structured so an operator can move up in tray count or control level without changing brand, training or spare parts channel.
Supply and service in Qatar
Supplied, delivered, installed and commissioned by EKT from our premises in Doha. Our technicians handle warranty work and routine maintenance, and we stock Venix spare parts locally.
فرن حمل حراري بتحكم ميكانيكي من Venix طراز SQ10M0G0 — 10 صواني 600×400 مم، قدرة 15.6 kW (18.5 kW version available)، حرارة قصوى 280 C. صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
Additional information
| Weight | 135 kg |
|---|---|
| Brand | Venix |
| Model / Ref | SQ10M0G0 |
| Product Line | Squero |
| Tray Capacity | 10 trays 600×400 mm / GN 1/1 |
| Control | Analogic mechanical |
| Fans / Speeds | 1 speed, 3 motors |
| Max Temperature | 280 C |
| Core Probe | Not fitted |
| Humidification | Direct injection |
| Chamber Material | AISI 304 |
| Chamber Size | 660 x 490 x 948 mm |
| Outside Dimensions | 937 x 890 x 1220 mm |
| Weight | 135 kg |
| Power | 15.6 kW (18.5 kW version available) |
| Voltage | 380-415V 3N~ / 220-240V ~ |
| Amperage | 24.5 A / 68 A |
| Certification | CE – CB |
| Country of Origin | Italy |
