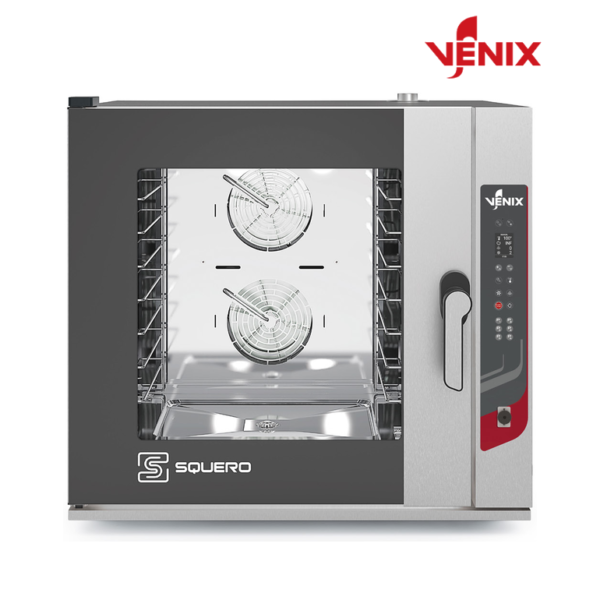

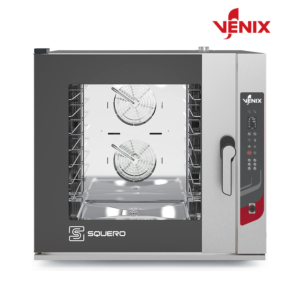

Bakery Convection Oven 6 Trays 600×400 GN 1/1 Digital – Venix SQ06DG0 Squero
The SQ06DG0 is the digital six-tray oven in the Venix Squero line. Two fans, five speeds and direct steam injection, with the option of a 30 A contactor build and a 12.5 kW heating package where faster recovery matters.
فرن حمل حراري للمخابز من Venix طراز SQ06DG0 — 6 صواني 600×400 مم، قدرة 10.5 kW (12.5 kW version available)، حرارة قصوى 260 C. صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
- Description
- Additional information
- Reviews (0)
Description
Overview
The SQ06DG0 is the digital six-tray oven in the Venix Squero line. Two fans, five speeds and direct steam injection, with the option of a 30 A contactor build and a 12.5 kW heating package where faster recovery matters.
Key points
- CE and CB certified.
- Available in 10.5 kW or 12.5 kW heating packages.
- Single-phase wiring possible at 220-240V, but draws 45.73 A — check the supply.
Technical specification
| Model / Ref | SQ06DG0 |
|---|---|
| Product line | Squero |
| Tray capacity | 6 trays 600×400 mm / GN 1/1 |
| Max tray load | 4 kg |
| Control | TFT 2,4″ IPS |
| Fans / speeds | 2 motors, 5 speeds |
| Max temperature | 260 C |
| Core probe | Single point PT1000 (optional) |
| Humidification | Direct injection |
| Chimney | 50 mm open |
| Door | Right handle |
| Chamber material | AISI 304 |
| Chamber size WxDxH | 660 x 490 x 612 mm |
| Oven size WxDxH | 937 x 893 x 883 mm |
| Net weight | 98 kg |
| Power | 10.5 kW (12.5 kW version available) |
| Power supply | 380-415V 3N~ / 220-240V ~ |
| Amperage | 16.8 A / 45.73 A |
| Water connection | Humidification water inlet |
| Certification | CE – CB |
| Origin | Italy |
Installation notes
Confirm the electrical supply and breaker rating against the amperage above before ordering — Qatar three-phase is nominally 415 V. Where the oven takes a humidification water inlet, a softener is strongly recommended on Qatar mains to protect the steam injection system from scale. Allow clearance for the door swing and for service access to the rear panel.
Why Venix
Venix SRL builds its ovens in Castelminio di Resana near Venice, and supplies its Torcello, Campiello, Squero, San Giorgio and Spriz lines across Europe and the Gulf. The range is structured so an operator can move up in tray count or control level without changing brand, training or spare parts channel.
Supply and service in Qatar
Supplied, delivered, installed and commissioned by EKT from our premises in Doha. Our technicians handle warranty work and routine maintenance, and we stock Venix spare parts locally.
Spare parts and related equipment
For spare parts, search by part number in our spare parts finder. See all Venix equipment or the full bakery equipment range.
Similar models:

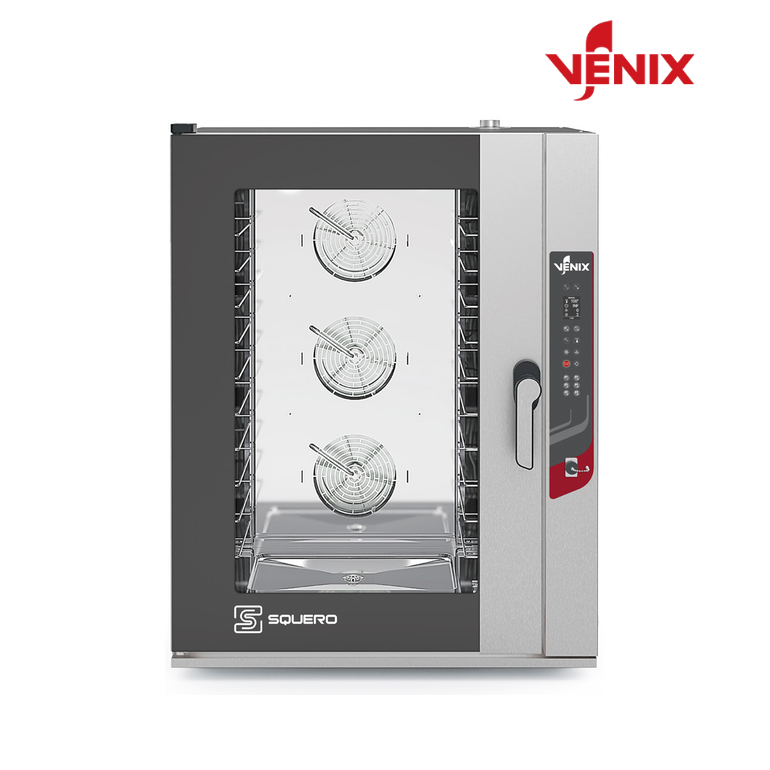

- Bakery Convection Oven 10 Trays 600×400 GN 1/1 Digital – Venix SQ10DG0 Squero
- Bakery Convection Oven 10 Trays 600×400 GN 1/1 Mechanical 280C – Venix SQ10M0G0
- Bakery Convection Oven 6 Trays 600×400 GN 1/1 Mechanical 280C – Venix SQ06M0G0
- Bakery Convection Oven 10 Trays 600×400 GN 1/1 Digital – Venix CP10DG0 Campiello
Frequently asked questions
What electrical supply does the Venix SQ06DG0 need?
The Venix SQ06DG0 is rated 10.5 kW (12.5 kW version available) on 380-415V 3N~ / 220-240V ~, drawing 16.8 A / 45.73 A. Have a qualified electrician confirm the supply, cable and isolator before installation.
What are the dimensions and weight of the SQ06DG0?
Outside dimensions: 937 x 893 x 883 mm. Weight: 98 kg.
How many trays does the SQ06DG0 take?
6 trays 600×400 mm / GN 1/1.
Can I get spare parts for the SQ06DG0 in Qatar?
Yes. EKT supplies original Venix spare parts in Doha. Send us the model and serial number from the rating plate, or the part number, on WhatsApp and we will confirm the part.
هل يتوفر فرن حمل حراري للمخابز Venix SQ06DG0 في قطر؟
نعم. توفر EKT فرن حمل حراري للمخابز Venix طراز SQ06DG0 في الدوحة مع التوصيل والتركيب والضمان والصيانة وقطع الغيار الأصلية. تواصل معنا عبر واتساب لمعرفة السعر والتوفر.
فرن حمل حراري للمخابز من Venix طراز SQ06DG0 — 6 صواني 600×400 مم، قدرة 10.5 kW (12.5 kW version available)، حرارة قصوى 260 C. صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
Additional information
| Weight | 98 kg |
|---|---|
| Brand | Venix |
| Model / Ref | SQ06DG0 |
| Product Line | Squero |
| Tray Capacity | 6 trays 600×400 mm / GN 1/1 |
| Control | TFT 2.4in IPS |
| Fans / Speeds | 2 motors, 5 speeds |
| Max Temperature | 260 C |
| Core Probe | Single point PT1000 (optional) |
| Humidification | Direct injection |
| Chamber Material | AISI 304 |
| Chamber Size | 660 x 490 x 612 mm |
| Outside Dimensions | 937 x 893 x 883 mm |
| Weight | 98 kg |
| Power | 10.5 kW (12.5 kW version available) |
| Voltage | 380-415V 3N~ / 220-240V ~ |
| Amperage | 16.8 A / 45.73 A |
| Certification | CE – CB |
| Country of Origin | Italy |
