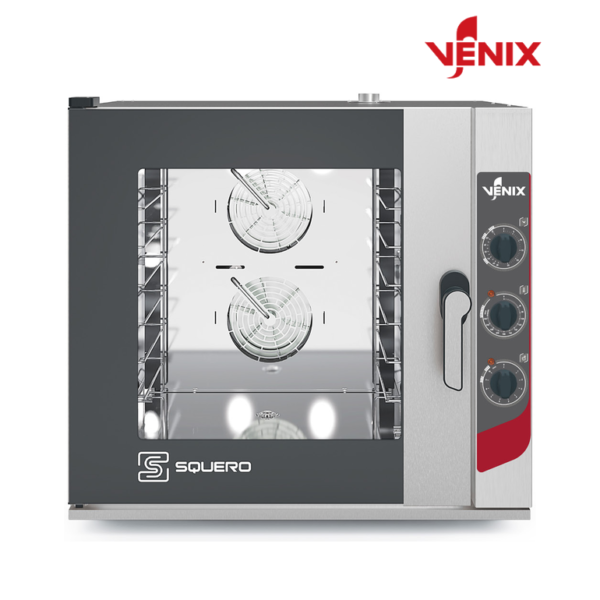

Bakery Convection Oven 6 Trays 600×400 GN 1/1 Mechanical 280C – Venix SQ06M0G0
The SQ06M0G0 is the mechanical version of the six-tray Squero: knobs instead of a screen, a motorised chimney, and a higher 280°C ceiling. Where staff turnover is high or service access is limited, a mechanical oven has fewer things to go wrong and fewer things to explain.
فرن حمل حراري بتحكم ميكانيكي من Venix طراز SQ06M0G0 — 6 صواني 600×400 مم، قدرة 10.4 kW (12.3 kW version available)، حرارة قصوى 280 C. صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
- Description
- Additional information
- Reviews (0)
Description
Overview
The SQ06M0G0 is the mechanical version of the six-tray Squero: knobs instead of a screen, a motorised chimney, and a higher 280°C ceiling. Where staff turnover is high or service access is limited, a mechanical oven has fewer things to go wrong and fewer things to explain.
Key points
- 280°C maximum — 20°C above the digital version.
- Motorised chimney damper rather than a fixed open flue.
- No display, no firmware: simpler to train on and simpler to repair.
Technical specification
| Model / Ref | SQ06M0G0 |
|---|---|
| Product line | Squero |
| Tray capacity | 6 trays 600×400 mm / GN 1/1 |
| Max tray load | 4 kg |
| Control | Analogic mechanical |
| Fans / speeds | 2 motors, 1 speed |
| Max temperature | 280 C |
| Core probe | Not fitted |
| Humidification | Direct injection |
| Chimney | 50 mm motorised |
| Door | Right handle |
| Chamber material | AISI 304 |
| Chamber size WxDxH | 660 x 490 x 612 mm |
| Oven size WxDxH | 937 x 893 x 883 mm |
| Net weight | 98 kg |
| Power | 10.4 kW (12.3 kW version available) |
| Power supply | 380-415V 3N~ / 220-240V 3~ |
| Amperage | 16.3 A / 26.6 A |
| Water connection | Humidification water inlet |
| Certification | CE – CB |
| Origin | Italy |
Installation notes
Confirm the electrical supply and breaker rating against the amperage above before ordering — Qatar three-phase is nominally 415 V. Where the oven takes a humidification water inlet, a softener is strongly recommended on Qatar mains to protect the steam injection system from scale. Allow clearance for the door swing and for service access to the rear panel.
Why Venix
Venix SRL builds its ovens in Castelminio di Resana near Venice, and supplies its Torcello, Campiello, Squero, San Giorgio and Spriz lines across Europe and the Gulf. The range is structured so an operator can move up in tray count or control level without changing brand, training or spare parts channel.
Supply and service in Qatar
Supplied, delivered, installed and commissioned by EKT from our premises in Doha. Our technicians handle warranty work and routine maintenance, and we stock Venix spare parts locally.
فرن حمل حراري بتحكم ميكانيكي من Venix طراز SQ06M0G0 — 6 صواني 600×400 مم، قدرة 10.4 kW (12.3 kW version available)، حرارة قصوى 280 C. صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
Additional information
| Weight | 98 kg |
|---|---|
| Brand | Venix |
| Model / Ref | SQ06M0G0 |
| Product Line | Squero |
| Tray Capacity | 6 trays 600×400 mm / GN 1/1 |
| Control | Analogic mechanical |
| Fans / Speeds | 1 speed, 2 motors |
| Max Temperature | 280 C |
| Core Probe | Not fitted |
| Humidification | Direct injection |
| Chamber Material | AISI 304 |
| Chamber Size | 660 x 490 x 612 mm |
| Outside Dimensions | 937 x 893 x 883 mm |
| Weight | 98 kg |
| Power | 10.4 kW (12.3 kW version available) |
| Voltage | 380-415V 3N~ / 220-240V 3~ |
| Amperage | 16.3 A / 26.6 A |
| Certification | CE – CB |
| Country of Origin | Italy |
