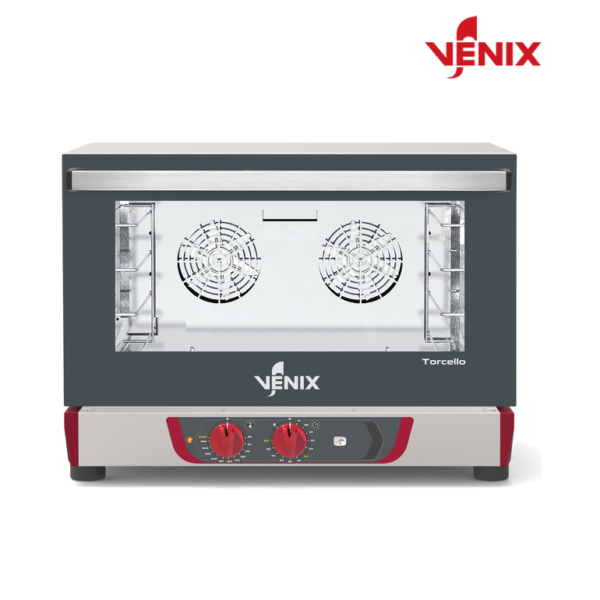

Convection Oven 4 Trays 600×400 GN 1/1 Mechanical 280C – Venix T04M0HAAR Torcello
The T04M0HAAR is the full-size four-tray Torcello: 600 x 400 mm or GN 1/1 trays with steam injection and a 280°C ceiling, at 45 kg and 5.8 kW. It is the practical counter-top oven for cafes, bakery counters and small kitchens.
فرن حمل حراري من Venix طراز T04M0HAAR — 4 صواني 600×400 مم، قدرة 5.8 kW، حرارة قصوى 280 C. صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
- Description
- Additional information
- Reviews (0)
Description
Overview
The T04M0HAAR is the full-size four-tray Torcello: 600 x 400 mm or GN 1/1 trays with steam injection and a 280°C ceiling, at 45 kg and 5.8 kW. It is the practical counter-top oven for cafes, bakery counters and small kitchens.
Key points
- 280°C maximum with direct steam injection.
- Flexible wiring: 12.2 A three-phase up to 25.1 A single-phase.
- 45 kg — sits on a counter or a stand without special support.
Technical specification
| Model / Ref | T04M0HAAR |
|---|---|
| Product line | Torcello |
| Tray capacity | 4 trays 600×400 mm / GN 1/1 |
| Tray rack | Wire PA-GA 4/75 |
| Max tray load | 3 kg |
| Control | Analogic mechanical, linear timer |
| Fans / speeds | 2 motors, 1 speed |
| Max temperature | 280 C |
| Core probe | Not fitted |
| Humidification | Direct injection |
| Chimney | 20 mm open |
| Door | Flap door |
| Chamber material | AISI 430 |
| Chamber size WxDxH | 660 x 456 x 340 mm |
| Oven size WxDxH | 750 x 695 x 553 mm |
| Net weight | 45 kg |
| Power | 5.8 kW |
| Power supply | Three-phase or single-phase |
| Amperage | 12.2 A / 21.1 A / 25.1 A |
| Water connection | Humidification water inlet |
| Certification | CE |
| Origin | Italy |
Installation notes
Confirm the electrical supply and breaker rating against the amperage above before ordering — Qatar three-phase is nominally 415 V. Where the oven takes a humidification water inlet, a softener is strongly recommended on Qatar mains to protect the steam injection system from scale. Allow clearance for the door swing and for service access to the rear panel.
Why Venix
Venix SRL builds its ovens in Castelminio di Resana near Venice, and supplies its Torcello, Campiello, Squero, San Giorgio and Spriz lines across Europe and the Gulf. The range is structured so an operator can move up in tray count or control level without changing brand, training or spare parts channel.
Supply and service in Qatar
Supplied, delivered, installed and commissioned by EKT from our premises in Doha. Our technicians handle warranty work and routine maintenance, and we stock Venix spare parts locally.
Spare parts and related equipment
For spare parts, search by part number in our spare parts finder. See all Venix equipment or the full bakery equipment range.
Similar models:
- Bakery Convection Oven 10 Trays 600×400 GN 1/1 Digital – Venix SQ10DG0 Squero
- Bakery Convection Oven 10 Trays 600×400 GN 1/1 Mechanical 280C – Venix SQ10M0G0
- Bakery Convection Oven 6 Trays 600×400 GN 1/1 Digital – Venix SQ06DG0 Squero
- Bakery Convection Oven 6 Trays 600×400 GN 1/1 Mechanical 280C – Venix SQ06M0G0
Frequently asked questions
What electrical supply does the Venix T04M0HAAR need?
The Venix T04M0HAAR is rated 5.8 kW on Three-phase or single-phase, drawing 12.2 A / 21.1 A / 25.1 A. Have a qualified electrician confirm the supply, cable and isolator before installation.
What are the dimensions and weight of the T04M0HAAR?
Outside dimensions: 750 x 695 x 553 mm. Weight: 45 kg.
How many trays does the T04M0HAAR take?
4 trays 600×400 mm / GN 1/1.
Can I get spare parts for the T04M0HAAR in Qatar?
Yes. EKT supplies original Venix spare parts in Doha. Send us the model and serial number from the rating plate, or the part number, on WhatsApp and we will confirm the part.
هل يتوفر فرن حمل حراري Venix T04M0HAAR في قطر؟
نعم. توفر EKT فرن حمل حراري Venix طراز T04M0HAAR في الدوحة مع التوصيل والتركيب والضمان والصيانة وقطع الغيار الأصلية. تواصل معنا عبر واتساب لمعرفة السعر والتوفر.
فرن حمل حراري من Venix طراز T04M0HAAR — 4 صواني 600×400 مم، قدرة 5.8 kW، حرارة قصوى 280 C. صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
Additional information
| Weight | 45 kg |
|---|---|
| Brand | Venix |
| Model / Ref | T04M0HAAR |
| Product Line | Torcello |
| Tray Capacity | 4 trays 600×400 mm / GN 1/1 |
| Control | Analogic mechanical, linear timer |
| Fans / Speeds | 1 speed, 2 motors |
| Max Temperature | 280 C |
| Core Probe | Not fitted |
| Humidification | Direct injection |
| Chamber Material | AISI 430 |
| Chamber Size | 660 x 456 x 340 mm |
| Outside Dimensions | 750 x 695 x 553 mm |
| Weight | 45 kg |
| Power | 5.8 kW |
| Voltage | Three-phase or single-phase |
| Amperage | 12.2 A / 21.1 A / 25.1 A |
| Certification | CE |
| Country of Origin | Italy |
