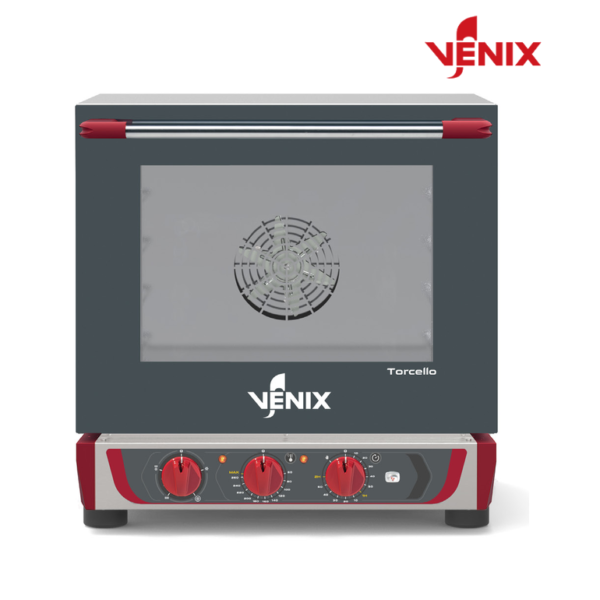

Convection Oven with Grill 4 Trays 450×340 GN 2/3 Mechanical – Venix T043M0HAJR
The T043M0HAJR is the smallest oven in this range: four 450 x 340 mm trays, a top grill element, and 2.9 kW from an ordinary 220-240 V socket. At 28 kg and 560 mm wide it fits where nothing else will — a snack counter, a small cafe, a food truck.
فرن حمل حراري مع شواية من Venix طراز T043M0HAJR — 4 صواني 450×340 مم، قدرة 2.9 kW، حرارة قصوى 260 C. صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
- Description
- Additional information
- Reviews (0)
Description
Overview
The T043M0HAJR is the smallest oven in this range: four 450 x 340 mm trays, a top grill element, and 2.9 kW from an ordinary 220-240 V socket. At 28 kg and 560 mm wide it fits where nothing else will — a snack counter, a small cafe, a food truck.
Key points
- Grill element for browning and gratinating, not just convection baking.
- Standard 220-240 V single-phase socket, 12.7 A — no special supply needed.
- GN 2/3 tray rack support available as an option.
- 28 kg and 560 mm wide: the smallest footprint in the Venix oven range.
Technical specification
| Model / Ref | T043M0HAJR |
|---|---|
| Product line | Torcello |
| Tray capacity | 4 trays 450×340 mm (GN 2/3 rack optional) |
| Tray rack | Wire PA 4/75 |
| Max tray load | 3 kg |
| Control | Mechanical with grill, linear timer |
| Fans / speeds | 1 motor, 1 speed |
| Max temperature | 260 C |
| Core probe | Not fitted |
| Humidification | Direct injection |
| Chimney | 20 mm open |
| Door | Flap door |
| Chamber material | AISI 430 |
| Chamber size WxDxH | 474 x 380 x 365 mm |
| Oven size WxDxH | 560 x 632 x 575 mm |
| Net weight | 28 kg |
| Power | 2.9 kW |
| Power supply | 220-240V ~ |
| Amperage | 12.7 A |
| Water connection | 3/4″ M gas threaded inlet, 0.8 l/min max |
| Certification | CE |
| Origin | Italy |
Installation notes
Confirm the electrical supply and breaker rating against the amperage above before ordering — Qatar three-phase is nominally 415 V. Where the oven takes a humidification water inlet, a softener is strongly recommended on Qatar mains to protect the steam injection system from scale. Allow clearance for the door swing and for service access to the rear panel.
Why Venix
Venix SRL builds its ovens in Castelminio di Resana near Venice, and supplies its Torcello, Campiello, Squero, San Giorgio and Spriz lines across Europe and the Gulf. The range is structured so an operator can move up in tray count or control level without changing brand, training or spare parts channel.
Supply and service in Qatar
Supplied, delivered, installed and commissioned by EKT from our premises in Doha. Our technicians handle warranty work and routine maintenance, and we stock Venix spare parts locally.
فرن حمل حراري مع شواية من Venix طراز T043M0HAJR — 4 صواني 450×340 مم، قدرة 2.9 kW، حرارة قصوى 260 C. صناعة إيطالية. توريد وتركيب وصيانة من EKT في الدوحة.
Additional information
| Weight | 28 kg |
|---|---|
| Brand | Venix |
| Model / Ref | T043M0HAJR |
| Product Line | Torcello |
| Tray Capacity | 4 trays 450×340 mm (GN 2/3 rack optional) |
| Control | linear timer, Mechanical with grill |
| Fans / Speeds | 1 motor, 1 speed |
| Max Temperature | 260 C |
| Core Probe | Not fitted |
| Humidification | Direct injection |
| Chamber Material | AISI 430 |
| Chamber Size | 474 x 380 x 365 mm |
| Outside Dimensions | 560 x 632 x 575 mm |
| Weight | 28 kg |
| Power | 2.9 kW |
| Voltage | 220-240V ~ |
| Amperage | 12.7 A |
| Certification | CE |
| Country of Origin | Italy |
